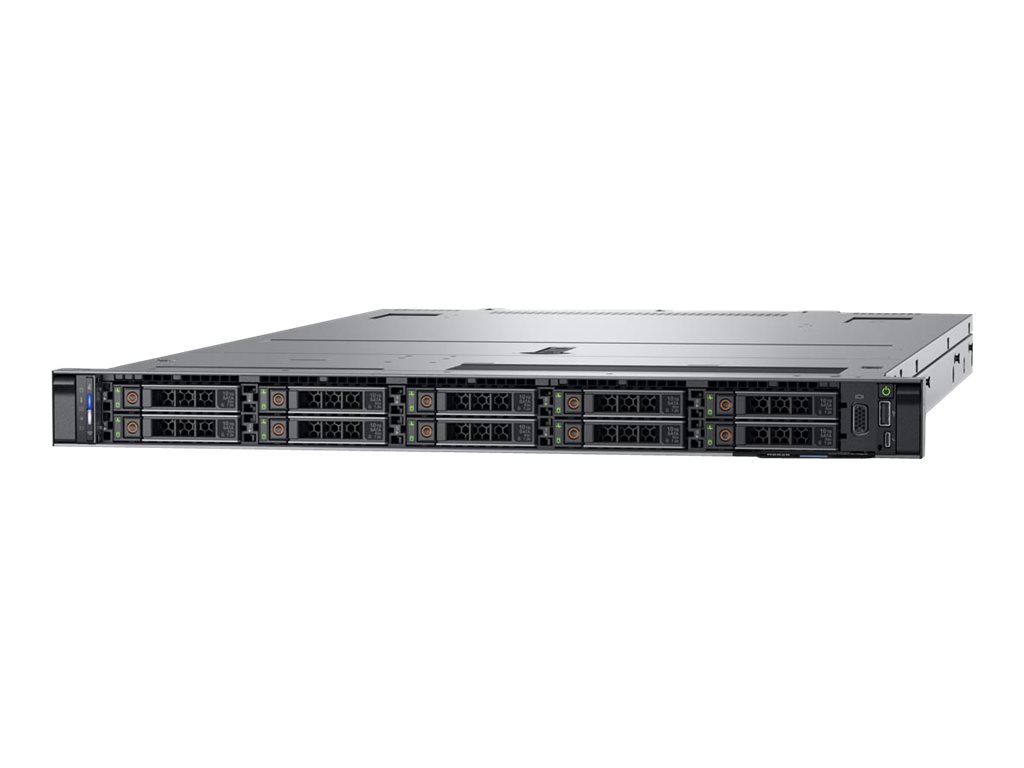

Dell - Dell PowerEdge R6525
Server - rack-mountable - 1U - 2-way - 2 x EPYC 7313 / up to 3.7 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - SSD 2 x 480 GB - Mixed Use - Matrox G200 - Gigabit Ethernet, 10 Gigabit Ethernet - no OS - monitor: none - with 39 Months ProSupport (7x24)
Dell
770-BDMT
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Dell PowerEdge R6525 - rack-mountable EPYC 7313 3 GHz - 32 GB - SSD 2 x 480 GB |
| Type | Server - rack-mountable |
| Bundled Services | 39 Months ProSupport (7x24) |
| Height (Rack Units) | 1U |
| Server Scalability | 2-way |
| Processor | 2 x AMD EPYC 7313 / 3 GHz (up to 3.7 GHz, (16-core) |
| Cache Memory | 256 MB L3 cache |
| Cache Per Processor | 128 MB |
| RAM | 32 GB (installed) / 2 TB (max) - DDR4 SDRAM |
| Storage Controller | RAID (PERC H745) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | 2 x SSD 480 GB (hot-swap) - SATA 6Gb/s - 2.5" - Mixed Use |
| Optical Storage | No optical drive |
| Graphics Controller | Matrox G200 |
| Video Memory | 16 MB |
| Networking | 1GbE, 10GbE |
| Power | (50/60 Hz) |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 48.2 cm x 82.289 cm x 4.28 cm |
| Weight | 21.8 kg |
| General | |
| Type | Server |
| Bundled Services | 39 Months ProSupport (7x24) |
| Product Form Factor | Rack-mountable - 1U |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 10 |
| Expansion / Connectivity | |
| Bays | 10 (total) / 8 (free) x hot-swap 2.5" |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 - full-height |
| Interfaces | 1 x USB 3.0 - Type A ¦ 2 x USB 2.0 - Type A (1 in front) ¦ 1 x management - micro-USB (1 in front) (iDRAC Direct port) ¦ 2 x VGA (1 front, 1 rear) ¦ 4 x LAN (10Gigabit Ethernet) ¦ 1 x management (iDRAC dedicated port) ¦ 2 x LAN (Gigabit Ethernet) |
| Miscellaneous | |
| Included Accessories | Bezel, riser card, rack rails with cable management arm |
| RAM | |
| Installed Size | 32 GB (installed) / 2 TB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 3200 MHz |
| Rated Memory Speed | 3200 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 32 (total) / 30 (empty) |
| Features | Registered |
| Configuration Features | 2 x 16 GB |
| RAM Supported | 2 TB registered ¦ 4 TB Load-Reduced |
| Networking | |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Ethernet Ports | 4 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5720, Intel X710-T4L |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Controller | Integrated Dell Remote Access Controller 9 X5 Enterprise (iDRAC9 X5) |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 800 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Storage Controller | |
| Type | 1 x RAID |
| Storage Controller Name | PERC H745 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Buffer Size | 4 GB |
| Cache Memory | |
| Installed Size | L3 cache - 256 MB |
| Cache Per Processor | 128 MB |
| Optical Storage | |
| Type | No optical drive |
| Operating System / Software | |
| OS Provided | No operating system |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Matrox G200 |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | SSD - hot-swap - 2.5" |
| Capacity | 2 x 480 GB |
| Interface Type | SATA 6Gb/s |
| Features | Mixed Use 3 DWPD, advanced format 512 |
| Dimensions & Weight | |
| Width | 48.2 cm |
| Depth | 82.289 cm |
| Height | 4.28 cm |
| Weight | 21.8 kg |
| Processor / Chipset | |
| CPU | AMD EPYC 7313 |
| Clock Speed | 3 GHz |
| Max Turbo Speed | 3.7 GHz |
| Number of Cores | 16-core |
| CPU Qty | 2 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
